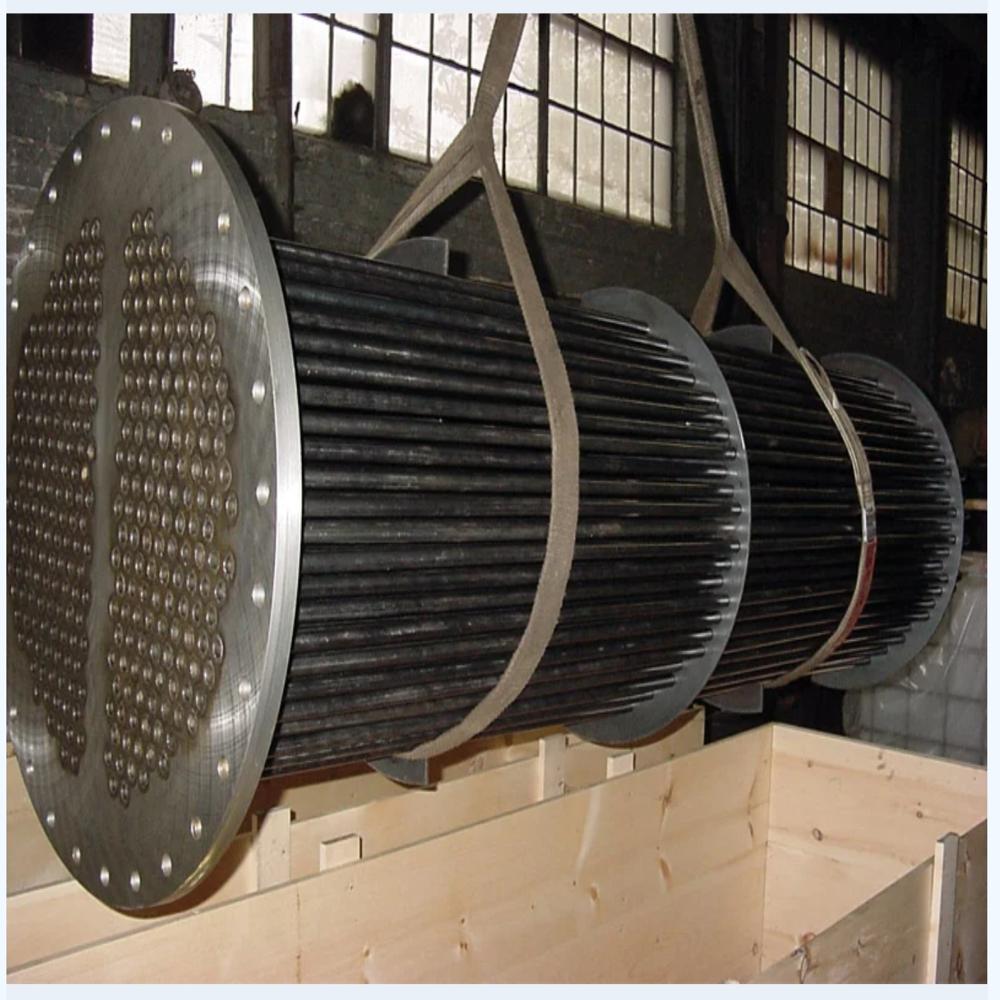

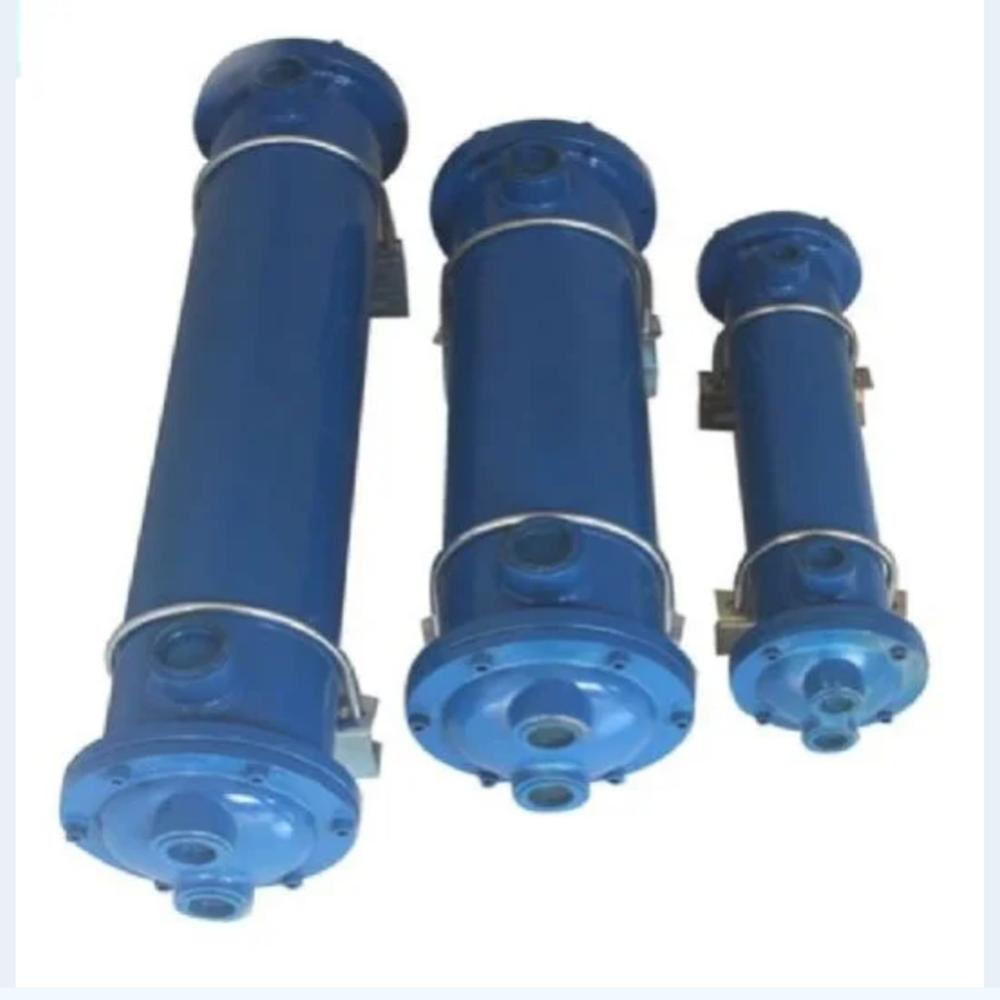

Shell & Tube Heat Exchanger

Get a Price/Quote

Shell & Tube Heat Exchanger Specification

Max. Capacity
60,000 kcal/hr

Thickness
5 mm (shell)

Diameter
500 mm

Temperature
Up to 250C

Number of Pipe
80 tubes

Max Pressure
16 Bar

Condition
New

Structure
Horizontal Shell & Tube

Liquid Flow Rate
50 m3/hr

Working Presssure
Up to 16 Bar

Power
Manual / No external power required

Weight
650 kg

Dimensions
2200 mm (L) x 500 mm (Dia)

Mounting Type
Floor Mounted

Tube Sheet Material
Stainless Steel

Tube Diameter
19 mm

Application
Industrial Heat Exchanging, Chemical, Food & Beverage, Pharmaceutical

Material of Construction
Mild Steel / Stainless Steel 304 or 316

Tube Length
2000 mm

Test Pressure
24 Bar

End Connection
Flanged / Customized

Surface Finish
Polished

Tube Arrangement
Triangular Pitch

Service Fluid
Water, Oil, Chemicals, etc.

Corrosion Resistance
Yes

Shell & Tube Heat Exchanger Trade Information

Delivery Time
5-7 Days

About Shell & Tube Heat Exchanger

Purchase the Shell & Tube Heat Exchanger, an exceptional solution engineered with rare precision for demanding industrial needs. Available in Mild Steel or lavish Stainless Steel 304/316, this stellar exchanger features a spectacular 19 mm tube diameter, polished finish, and robust corrosion resistance. With instant checkout, secure a floor-mounted, horizontal structure tailored for water, oil, or chemicals. Designed for efficiency-max capacity of 60,000 kcal/hr, up to 16 Bar pressure, 250C temperature, and 650 kg weight-this rare piece guarantees durability and performance for chemical, food & beverage, and pharmaceutical sectors.

Applications & Usage of Shell & Tube Heat Exchanger

The Shell & Tube Heat Exchanger is ideally suited for rigorous industrial heat exchanging, whether for chemical processing, food and beverage production, or pharmaceutical manufacturing. With its robust construction and polished surface, it is designed for floor-mounted installation, providing seamless integration in various settings. Its usage spans processes requiring efficient heat transfer, while its triangular tube arrangement and corrosion resistance make it reliable for intensive, continuous operations across many industrial sectors.

Export Markets, Supply & Sampling Information

Our Shell & Tube Heat Exchanger enjoys demand in global export markets, especially across chemical and manufacturing hubs. With supply and stock ready for immediate dispatch, we cater to a wide array of international clients. Samples can be provided upon request, supporting your procurement decisions. We offer flexible payment terms and streamlined processes, ensuring a hassle-free purchase experience for companies worldwide looking to invest in stellar, high-performance heat exchangers.

FAQ's of Shell & Tube Heat Exchanger:

Q: How does the Shell & Tube Heat Exchanger ensure corrosion resistance?

A: The heat exchanger is constructed with high-quality Mild Steel or Stainless Steel 304/316 and features stainless steel tube sheets, all of which ensure excellent corrosion resistance, making it suitable for various harsh industrial environments.

Q: What are the primary applications of this heat exchanger?

A: This product is widely used in industrial heat exchanging for the chemical, food and beverage, and pharmaceutical industries. It handles a variety of service fluids including water, oil, and chemicals, making it versatile for numerous processes.

Q: When can I expect delivery after instant checkout?

A: Stock is maintained for fast supply, and shipment is organized promptly after instant checkout. Delivery timelines depend on your location and export requirements, but we prioritize speedy processing for all orders.

Q: Where is the Shell & Tube Heat Exchanger mounted in an industrial setup?

A: This unit is designed for floor-mounted installation, ensuring stable support and optimal heat exchange efficiency within industrial facilities.

Q: What are the benefits of the triangular tube pitch arrangement?

A: The triangular pitch increases heat transfer efficiency and allows for a higher number of tubes within the exchanger, facilitating improved performance in thermal exchange processes.

Q: How can I request a sample before placing a large order?

A: To request a sample, simply contact our sales team. Samples are available to help you evaluate the product's compatibility with your system before making a larger purchase.
